BR-25M 1+1 Type 1 25kA Surge Arrester For TT And TNS

Get A Quote
Description

Product characteristics:

Specification BR-25M 150 1+1 BR-25M 275 1+1 BR-25M 320 1+1
SPD classification according to EN61643-11 Type 1 + 2 + 3 Type 1 + 2 + 3 Type 1 + 2 + 3
SPD classification according to IEC61643-11 Class I + II + III Class I + II + III Class I + II + III
Nominal operating voltage Un 120V(50/60Hz) 230V(50/60Hz) 250V(50/60Hz)
Max. continuous operating a.c. voltage Uc (L-N/N-PE) 150V/255V(50/60Hz) 275V/255V(50/60Hz) 320V/255V(50/60Hz)
Lightning impulse current (10/350μs) Iimp (L-N/N-PE) 25kA/50kA 25kA/50kA 25kA/50kA
Total discharge current (10/350μs) Itotal 50kA 50kA 50kA
Nominal discharge current (8/20μs) In (L-N/N-PE) 25kA/50kA 25kA/50kA 25kA/50kA
Max. discharge current (8/20μs) Imax (L-N/N-PE) 120kA/200kA 120kA/200kA 120kA/200kA
Quantity of electric charge (L-N, N-PE) Q 12.5As, 25As 12.5As, 25As 12.5As, 25As
Specific energy (L-N, N-PE) W/R 156kJ/Ω, 625kJ/Ω 156kJ/Ω, 625kJ/Ω 156kJ/Ω, 625kJ/Ω
Voltage protection level Up (L-N/N-PE) ≤0.8kV/≤1.5kV ≤1.3kV/≤1.5kV ≤1.3kV/≤1.5kV
Short-circuit current rating a.c. Isccr (L-N/N-PE) 25kA rms/100A rms 25kA rms/100A rms 25kA rms/100A rms
Max. backup fuse 200A gG 200A gG 200A gG
Temporary overvoltage TOV-withstand UT(L-N) 175V/5sec. 335V/5sec. 350V/5sec.
Temporary overvoltage TOV-safe failure UT (L-N) 250V/120min. 440V/120min. 550V/120min.
Temporary overvoltage TOV-withstand UT(N-PE) 1200V/200ms 1200V/200ms 1200V/200ms
Leakage current Ipe <2mA <2mA <2mA
Response time tA ≤25ns/≤100ns ≤25ns/≤100ns ≤25ns/≤100ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃
Cross-section area (Min.) 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20
Order Code B17210 B18153 B17223
Order Code (With remote signaling) B17211 B18154 B17224

Features:

Response time: ≤25ns/≤100ns

Nominal discharge current (8/20us): 25kA

Temperature range: -40℃—80℃

Class I+II+III / Type 1+2+3 surge protection.

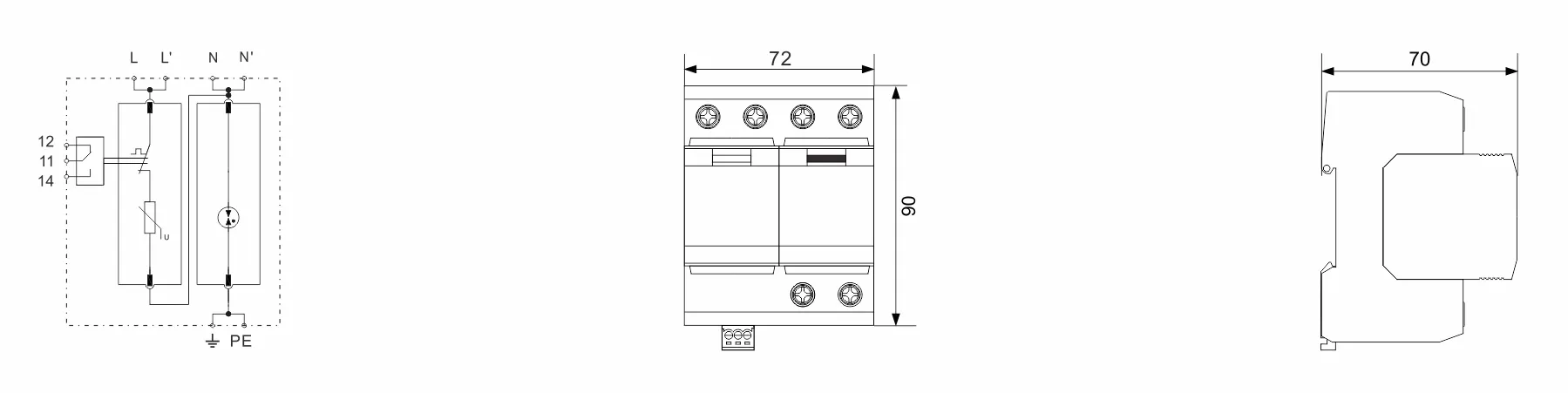

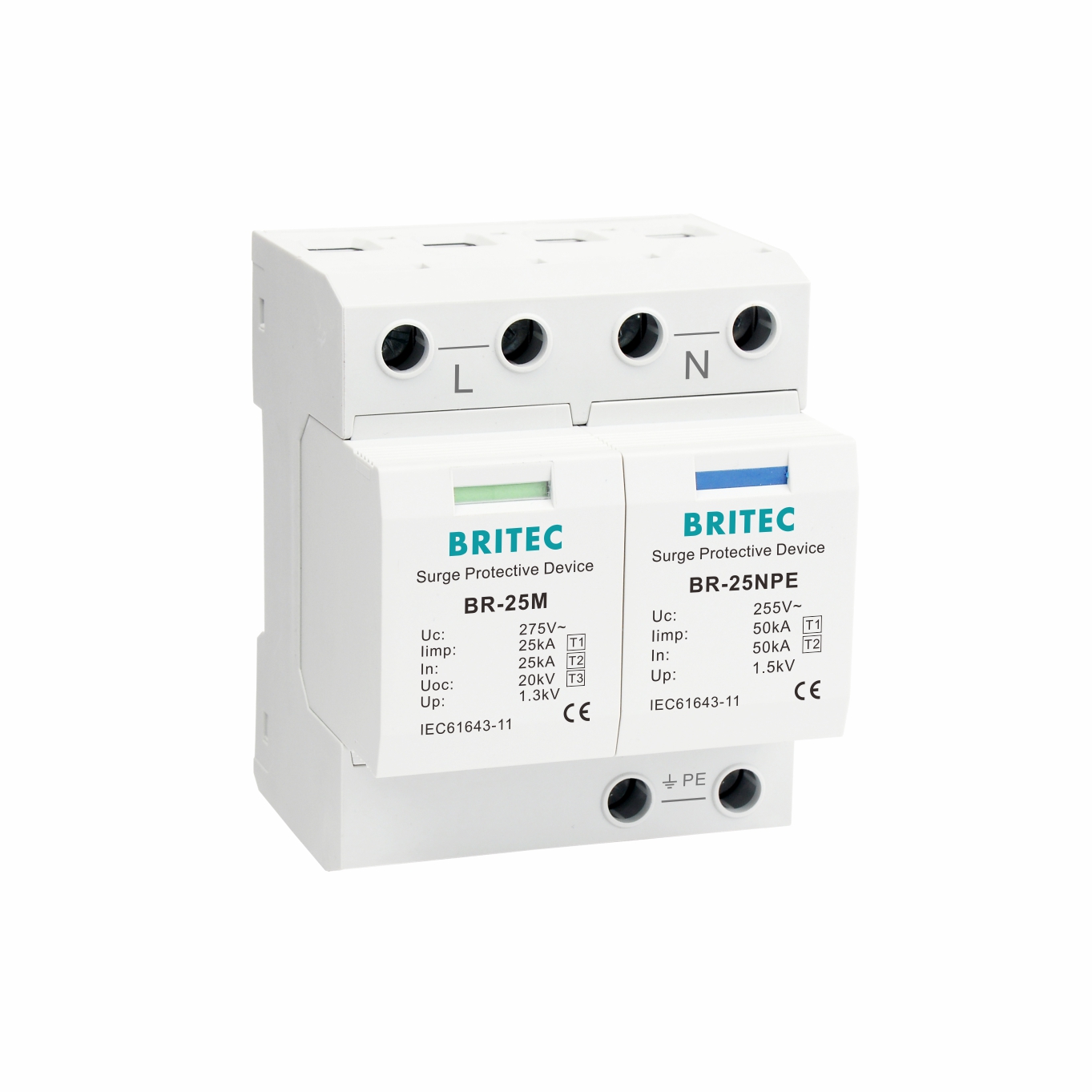

Part number: BR-25M 1+1

It consists of high performance varistor with thermal disconnection tripping device.

Number of poles: 1P+NPE

With temperature control circuit breaker and built-in over-current protective circuit, the modular SPD can release automatically to avoid fire danger when it breaks down.

OEM support

Surge protection device (SPD) is an indispensable device for lightning protection of electronic equipment.

It is used of limit the instantaneous overvoltage of the power line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

Enclosure material: Thermoplastic UL94-V0

Application:

Applied in SPD Class Ⅰ (Class B) for various power supply system of lightning current surge protection.

The SPD normally is installed in the building power distribution box, computer center, telecom room, elevator control room, wiring tv room, building control room, security monitor center, fire control center ,industry control room, frequency converter equipment control room, hospital surgery room, monitoring room and the distribution box in whichelectronic mechanical equipment.

The Type 1 surge protector is usually installed at the junction of LPZ0B and LPZ1

It can be installed in the low voltage power distribution cabinet/box of building.

It is suitable for distribution cabinets and distribution boxes with outdoor access lines in buildings.

Can handle lightning currents and protect sensitive electronic equipment.

Widely used in communication equipment, power, security, traffic, industrial control and other fields of power protection.
