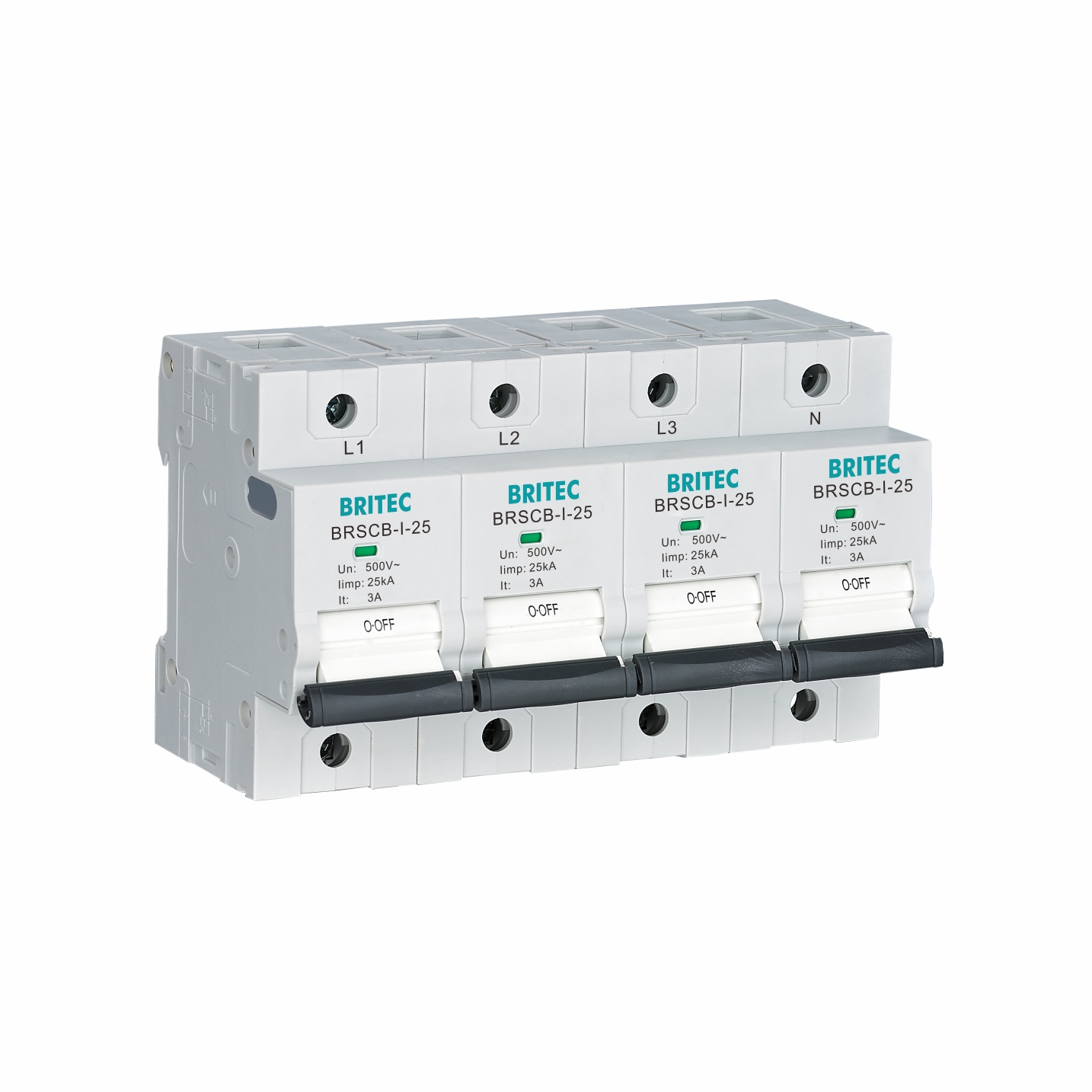

BRSCB-I-25 Class I 25KA Dedicated Backup Protector

Get A Quote
Description

Product characteristics:

Specification BRSCB-I-25 4P BRSCB-I-25 3P BRSCB-I-25 2P BRSCB-I-25 1P
Nominal a.c. voltage Un 500V 500V 500V 500V
Impluse current (10/350μs) Iimp 25kA 25kA 25kA 25kA
Nominal discharge current (8/20μs) In 50kA 50kA 50kA 50kA
Max. discharge current (8/20μs) Imax 100kA 100kA 100kA 100kA
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state/fault indication green/red green/red green/red green/red
Cross-section area (Min.) 2.5mm² 2.5mm² 2.5mm² 2.5mm²
Cross-section area (Max.) 35mm² 35mm² 35mm² 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic   UL94-V0
Degree of protection IP20 IP20 IP20 IP20
Order Code B8484 B8485 B8486 B8487

Features:

MCB specially designed for Surge Arrester.

It can cut the leakage current to 3A

The color of the visual alarm window indicates the working status of the protection, green (normal) and red (fault).

Flame-retardant housing design for easy installation on 35mm din rail.

Lightning impulse current (25kA 10/350μs, 100kA 8/20μs) – ensuring effective SPD lightning protection.

Surge backup protector for TN systems.
