One of the most common concerns for homeowners and facility managers is how to protect valuable electrical systems from power disturbances. While circuit breakers are standard for preventing overload and fire risks, they do not stop dangerous voltage surges. These surges—caused by lightning, grid switching, or even internal equipment cycling—can silently damage sensitive electronics and shorten the lifespan of appliances.
A whole house surge protection device (SPD) offers a line of defense at the main distribution panel, protecting every connected load in the building. But is it worth the investment? Let’s explore the pros and cons, technical details, and practical use cases to help you make an informed decision.
A Whole House Surge Protection Device (SPD) is a protective component installed at the electrical service panel to safeguard an entire home or building against transient overvoltages. Unlike simple outlet strips, which only protect a handful of devices, a whole house surge protector shields all circuits—including HVAC systems, refrigerators, washing machines, and embedded electronics that cannot be plugged into power strips.
According to IEC 61643-11 and UL 1449, whole house SPDs are designed to limit surge voltages and safely divert the resulting surge current to earth, ensuring connected loads remain within safe voltage levels. The device acts in nanoseconds, far faster than circuit breakers, and prevents both catastrophic failures and the “silent killer” effect of repetitive micro-surges.
Whole house SPDs are classified into Type 1, Type 2, and Type 3, each installed at different points of the electrical system:
Type 1: Installed at the service entrance, designed to handle partial lightning currents (up to 25–50 kA).

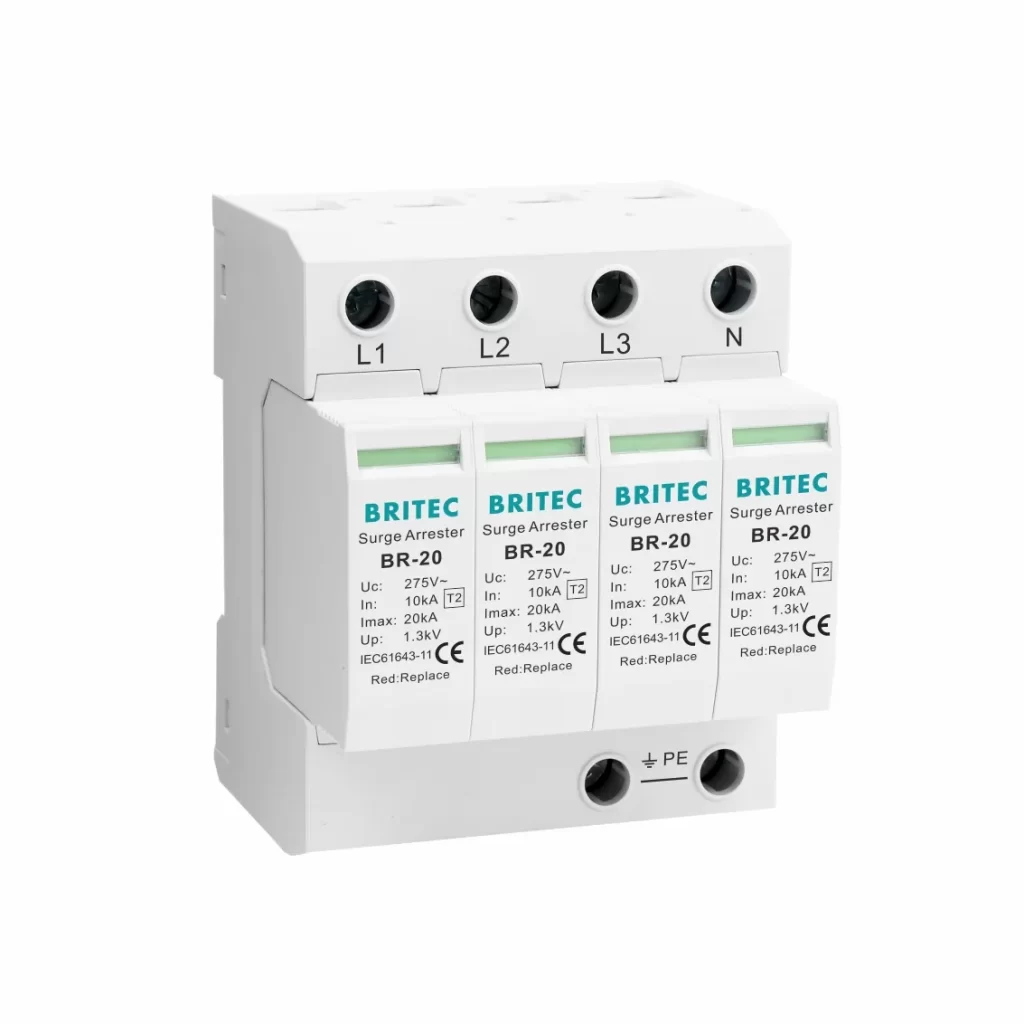

Type 2: Installed at distribution boards, the most common choice for residential applications. Handles surges from the grid or internal switching.
Type 3: Installed near sensitive equipment, such as TVs, computers, or servers, offering final-stage protection.
For a more detailed breakdown of SPD categories, see our dedicated blog post: Types of Surge Protection Devices.
A Whole House Surge Protection Device relies primarily on Metal Oxide Varistors (MOVs) and sometimes Gas Discharge Tubes (GDTs) or spark gaps.
MOV Function: At normal grid voltage (e.g. 230 V AC), the MOV behaves like an open circuit. When a transient surge occurs (e.g. 6 kV from a nearby lightning strike), the MOV instantly changes to a low-resistance path, clamping the voltage to a safe level (e.g. 1.2 kV residual) and shunting excess energy to the ground.
GDT Function: GDTs act as high-speed switches. Under normal conditions, they are non-conductive; when surge voltage exceeds their threshold, an arc forms inside the tube, providing a very low-resistance discharge path to earth.
Energy Dissipation: Surges are measured in microseconds, and SPDs are designed per IEC 61643-11 to withstand currents in the 5–40 kA range depending on their type.
For maximum efficiency, SPDs must be installed with:
Short lead length (<0.5 m) to minimize residual voltage.
Adequate conductor size (≥6 mm²) to avoid thermal stress.
A dedicated breaker or Surge Circuit Breaker (SCB) upstream, ensuring the SPD can be disconnected safely if overstressed.
Grounding resistance ≤10 Ω to ensure surge energy is properly diverted.
This layered engineering approach ensures that the SPD is not just a “box on the panel” but a coordinated part of the protection ecosystem.
Whole house surge protectors are tested to different waveforms that mirror real-world threats. Type 1 devices are verified with Iimp (10/350 μs) to emulate lightning current at the service entrance. Type 2 devices use In / Imax (8/20 μs) to represent distribution-level surges. Type 3 devices are validated with a combination wave (1.2/50 kV – 8/20 A) near sensitive loads.
In 230/400 V systems, typical Uc values are 275 V (L-N/L-PE). For 120/240 V split-phase systems, Uc commonly sits at 150 V (L-N) / 300 V (L-L). Select Up to match your equipment’s insulation coordination; for homes, Up ≤ 1.5 kV is a practical target.
For TN-S/TT networks, a 3+1 topology (MOVs on L-N, spark gap on N-PE) lowers the N-PE stress and follow current risk. Always coordinate the SPD’s ISCCR with the panel’s available short-circuit current and use the manufacturer’s backup MCB/fuse table to size the upstream protective device correctly.
Unlike plug-in protectors, a Whole House Surge Protection Device shields the entire electrical system, including large hardwired appliances.
Type 2 SPDs typically handle 20–40 kA, making them suitable for lightning-prone areas and unstable grids.
Conforms to IEC 61643-11 and UL 1449, ensuring international safety and performance benchmarks.
When combined with Type 1 at the service entrance and Type 3 near sensitive devices, the system forms a multi-tiered defense against both high-energy lightning strikes and internal micro-surges.
Continuous exposure to surges—even small ones—damages electronics gradually. SPDs filter these surges, reducing the risk of premature equipment failure.
Modern whole house surge protectors offer status indicators, remote signaling contacts, and surge counters (e.g., BRSC-01), enabling preventive maintenance and integration into building management systems.
Replacing an SPD ($500) is cheaper than replacing a failed HVAC ($5,000) or losing a day of data center uptime (~$10,000/hour).
While requirements vary by region, whole house surge protectors aligned with IEC 61643-11 / UL 1449 strengthen overall electrical safety and can support compliance goals. In practice, insurers and AHJs increasingly recognize SPDs as part of a robust protection plan, especially for homes with EV chargers, heat pumps, PV inverters, and smart-home hubs.
Uptime for modern electrified homes
Today’s homes run microprocessor-rich equipment—induction cooktops, variable-speed HVAC, servers/NAS. A whole house surge protector reduces nuisance failures and unplanned service calls. Pairing a Type 2 whole home surge protector with local Type 3 strips near AV/IT gear materially lowers downtime.
Including device and electrician labor, home surge protector cost ranges from $200–$700.
Unlike plug-in strips, whole house SPDs must be installed at the distribution panel by a licensed electrician.
MOV-based designs degrade over time, especially after multiple surge events. Without inspection, the SPD may appear functional but offer no protection.
Poor grounding (earth resistance >10 Ω) renders the SPD ineffective. Many older homes require upgrades before installation.
Whole house SPDs mitigate voltage surges, but they cannot prevent direct lightning strikes, long-term overvoltage, or wiring faults. For full protection, they must be paired with circuit breakers, lightning rods, and grounding systems.
High-energy transients and subsequent leakage can occasionally interact with GFCI/AFCI devices. Proper SPD selection, short lead routing, and using the recommended upstream breaker curve help minimize nuisance trips.
MOVs age thermally and electrically. Without surge counters and remote signaling, an SPD can look “alive” but be functionally exhausted. Plan predictive replacement based on event counts, environment, and manufacturer guidance—not only on visible flags.
“My breaker protects me from surges.”
False—breakers trip on current, not voltage. Surges can pass through unnoticed.
“An SPD lasts forever.”
Wrong—MOVs wear out. Without replacement, the SPD may silently fail.
“A power strip is enough.”
Misleading—plug-in protectors don’t cover hardwired loads or full house systems.
“Wiring length doesn’t matter.”
Incorrect—longer leads increase residual voltage (Up), reducing protection.
“Only one SPD is needed.”
Incomplete—best practice is layered protection (Type 1 + Type 2 + Type 3).
Visual inspections: Check indicator window regularly (green = OK, red = fail).
Remote monitoring: For critical systems, use SPDs with signaling contacts to integrate into BMS.
Surge counters: Track surge events (e.g., with BRSC-01) to anticipate end-of-life.
Modular replacement: Replace cartridges quickly without rewiring.
Annual testing: Verify earth resistance ≤ 10 Ω to ensure surge diversion works.
Periodic testing: Ensure trip curve accuracy.
Replacement: If mechanical wear or nuisance tripping occurs.
Annual insulation checks: Especially in industrial environments.
As an electrical engineer, I often get asked: “Is a whole house surge protector device really worth the investment?” My answer is: absolutely—if you value your equipment.
Residential Homes: Average appliance and electronics value easily exceeds $10,000. A $500 whole house power surge protector installation is a fraction of that replacement cost.
Industrial Facilities: A single surge can damage PLCs, drives, or automation controllers, causing production downtime. Here, ROI is immediate.
Data Centers & Offices: Downtime costs can exceed $10,000 per hour. An SPD is not an expense, but insurance for business continuity.
| Application Scenario | Typical SPD Type | Estimated Cost (Device + Installation) | Value Delivered |
|---|---|---|---|
| Residential Homes | Type 2 (with optional Type 3 strips) | $200 – $700 | Protects all appliances (TVs, HVAC, refrigerators, EV chargers, smart-home hubs). Prevents $10,000+ potential replacement costs. |
| Lightning-Prone Regions | Type 1 + Type 2 layered | $400 – $1,200 | Handles high-energy lightning currents. Reduces catastrophic failures of wiring, panels, and connected loads. |
| Industrial Facilities | Type 1 + Type 2 + Type 3 coordinated | $1,000 – $5,000+ | Prevents downtime in PLCs, automation systems, and drives. ROI immediate compared to thousands lost per hour of halted production. |
| Data Centers & Offices | Type 2 upstream of UPS + Type 3 near servers | $1,500 – $5,000+ | Protects critical IT assets. Avoids $10,000+/hour downtime. Ensures business continuity. |
| Compact / Retrofit Installations | Integrated SPD + fuse models (e.g., BR-30FU) | $200 – $500 | Cost-effective solution where panel space is limited. Offers reliable protection without complex rewiring. |
Conclusion: The upfront cost is small compared to the financial and safety risks of unprotected systems.
Homes: Type 2 SPD in the main panel + Type 3 power strips for sensitive electronics.
High-risk regions (lightning-prone): Type 1 + Type 2 layered protection.
Industrial and commercial facilities: Full Type 1+2+3 coordination.
Compact installations: Use integrated SPD + fuse models (e.g., BR-30FU) for cost-effective setups.
Bottom line: Circuit breakers protect against fire risks; SPDs protect against surge damage. For reliable electrical safety, you need both.
Whole house surge protection devices are not optional luxuries—they are a vital part of modern electrical safety. By following IEC standards, choosing the right SPD type, and ensuring proper installation and maintenance, you can safeguard both people and property.
Our company’s SLP and BR series SPDs, compliant with IEC 61643-11, are engineered for reliable performance with modular designs, easy replacement, and monitoring options. Whether for residential or industrial use, the right surge protection strategy provides long-term peace of mind.
