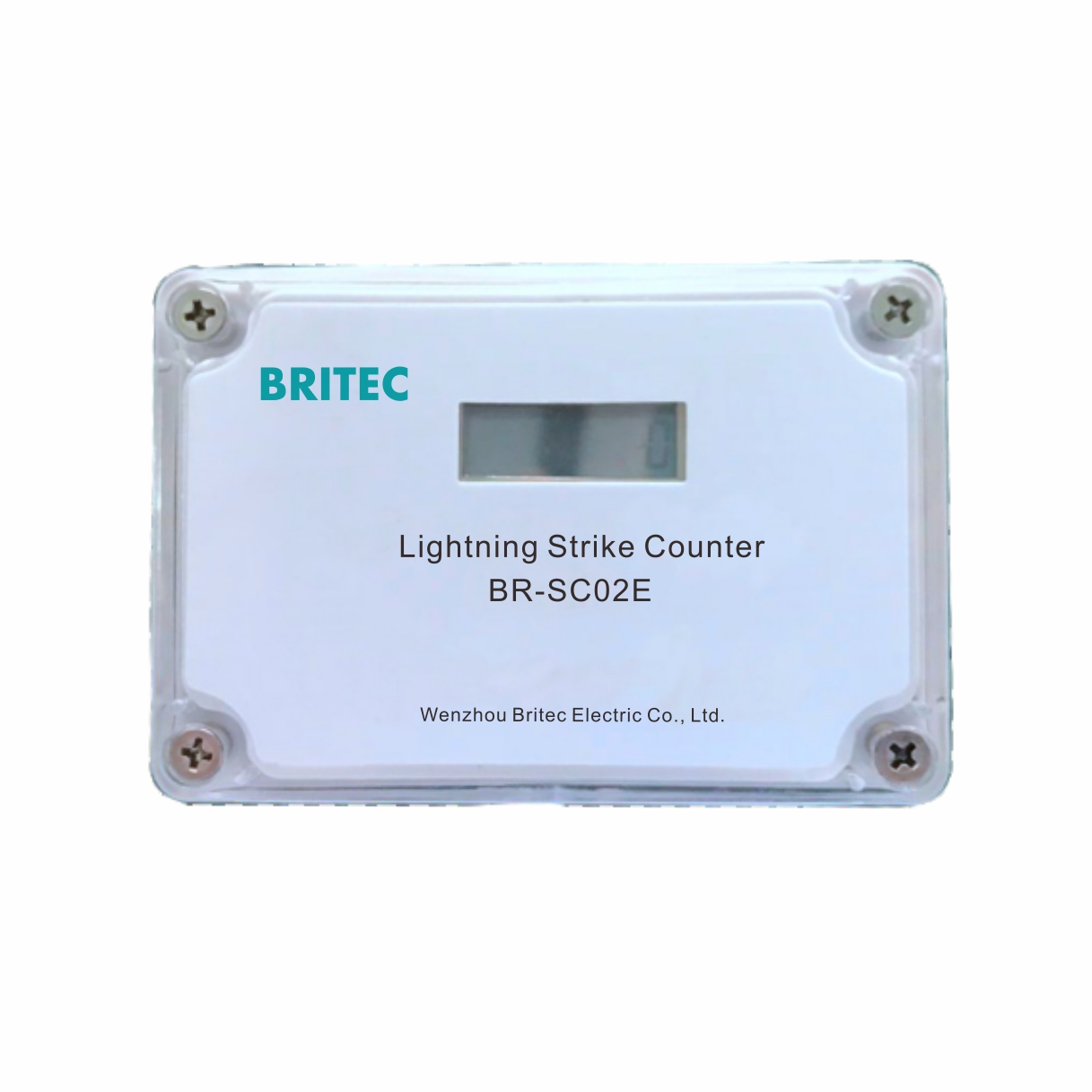

BR-SC02E Lightning Strike Counter

Get A Quote
Description

Product characteristics:

Specification BR-SC02E
Nominal discharge current (8/20μs) In 5kA-150kA
Lightning impulse current (10/350μs) Iimp 5kA-50kA
Maximum Diameter of Down Conductor ≤20mm
Maximum Width of Flat Steel <35mm
Thickness <12mm
Counting Number 0-999999
Protection Level IP65

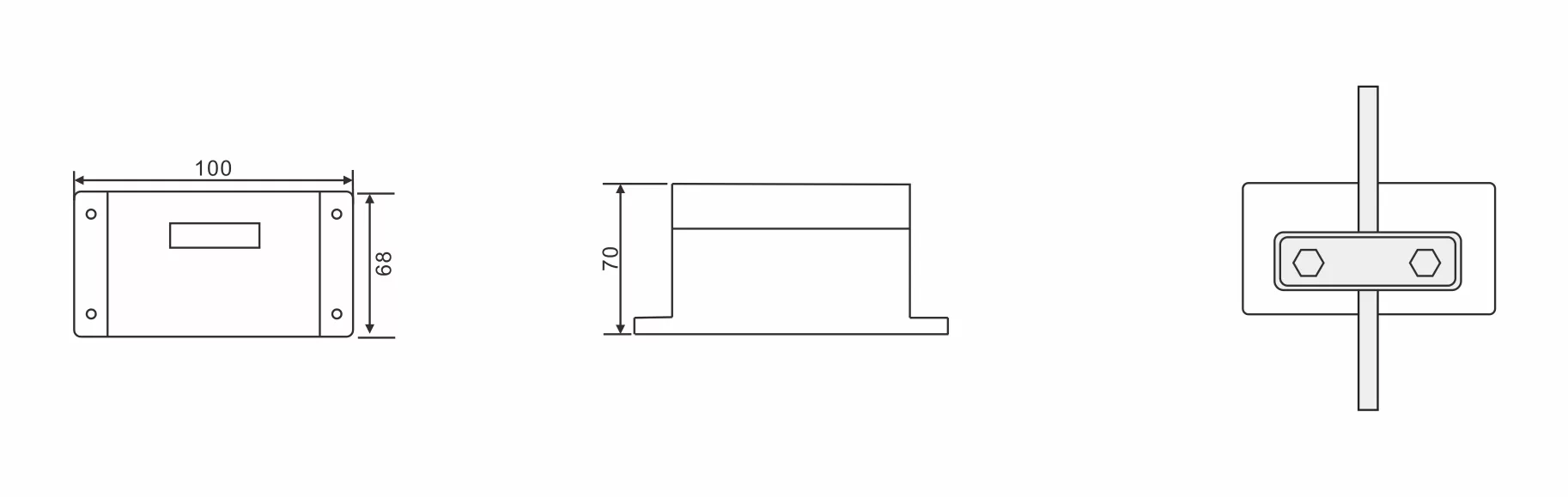

LxWxH (mm) 100×68×70
Working Temperature
-40~+85℃

Features:

The BR-SC02E lightning strike counter is a general-purpose counter.

When the lightning protection circuit system is normal, there is no current flowing through the discharge line, and the lightning counter does not count. When lightning current discharge occurs in the circuit, the lightning protection circuit discharges the lightning current to ground. When current flows through the discharge line, the counter senses the voltage and starts to count.

Application:

The BR-SC02E lightning strike counter is applicable to all SPDS, lightning rods, etc. It can sense and discharge lightning current and display the cumulative number of lightning strikes on the digital screen. The product counting is accurate and there are no error-free actions. The working data will not be lost after power failure, and it has functions such as dust-proof and water-proof.
