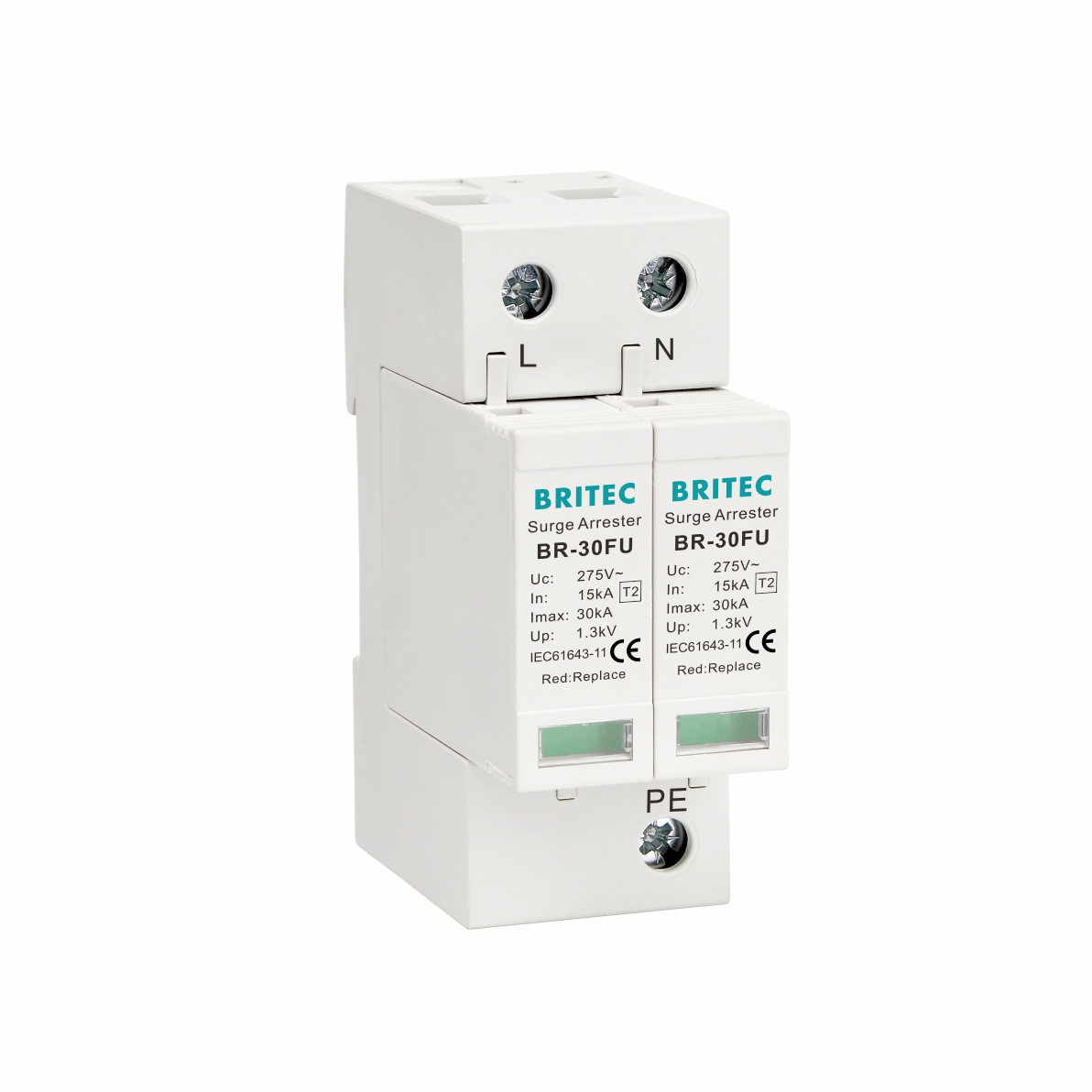

BR-30FU 2P 30kA Low Voltage Type 2 Surge Protection Device For AC Power System

Get A Quote
Description

Product characteristics:

Specification BR-30FU 150 2P BR-30FU 275 2P BR-30FU 320 2P BR-30FU 385 2P BR-30FU 440 2P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20μs) In 15kA 15kA 15kA 15kA 15kA
Max. discharge current (8/20μs) Imax 30kA 30kA 30kA 30kA 30kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA Up ≤0.6kV ≤1kV ≤1.2kV ≤1.3kV ≤1.5kV
Short-circuit withstand capacity Isccr 25kA 25kA 25kA 25kA 25kA
Temporary overvoltage TOV-withstand UT 180V/5sec. 335V/5sec. 400V/5sec. 500V/5sec. 580V/5sec.
Temporary overvoltage TOV-safe failure UT 230V/120min. 440V/120min. 520V/120min. 650V/120min. 765V/120min.
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state/fault indication green/red green/red green/red green/red green/red
Cross-section area (Min.) 4mm² 4mm² 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm² 35mm² 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic   UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B16102 B16114 B16126 B16138 B16150
Order Code (With remote signaling) B16103 B16115 B16127 B16139 B16151

Features:

Protect equipment against damage caused by sudden over voltage such as lightning and thunder is used.

35mm electrical lead rail installation

With visual indication of the state.

8/20us wave form, low residual voltage

BR-30FU is surge arrester type 2 and class II according to EN 61643-11 and IEC 616431-11.

Hot melt flow double protection.

High energy surge protection, ns response speed

These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 1-2 (according to IEC 1312-1 and EN 62305) for equipotential bonding and elimination of transient over voltages that originate during atmospheric discharges or switching processes.

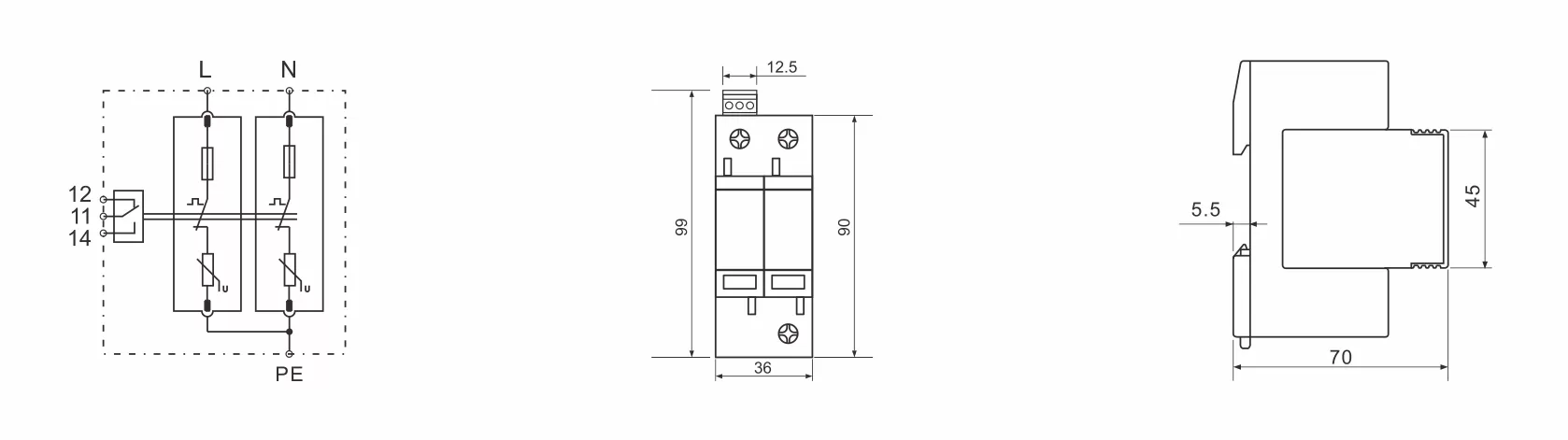

Complete device consists of a base part and pluggable module.

Protection mode: L/N-PE.

Remote alarm interface

Application:

Protecting low-voltage consumers’ installations against indirect lightning discharges.

In order to shunt and pressure to limit indirect lightning current or other instantaneous overvoltage.

For using in the lightning protection zones concept at boundary 1-2.

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.

• Installation must be performed only by electrically skilled operator

• If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.
