Karakteristik produk:

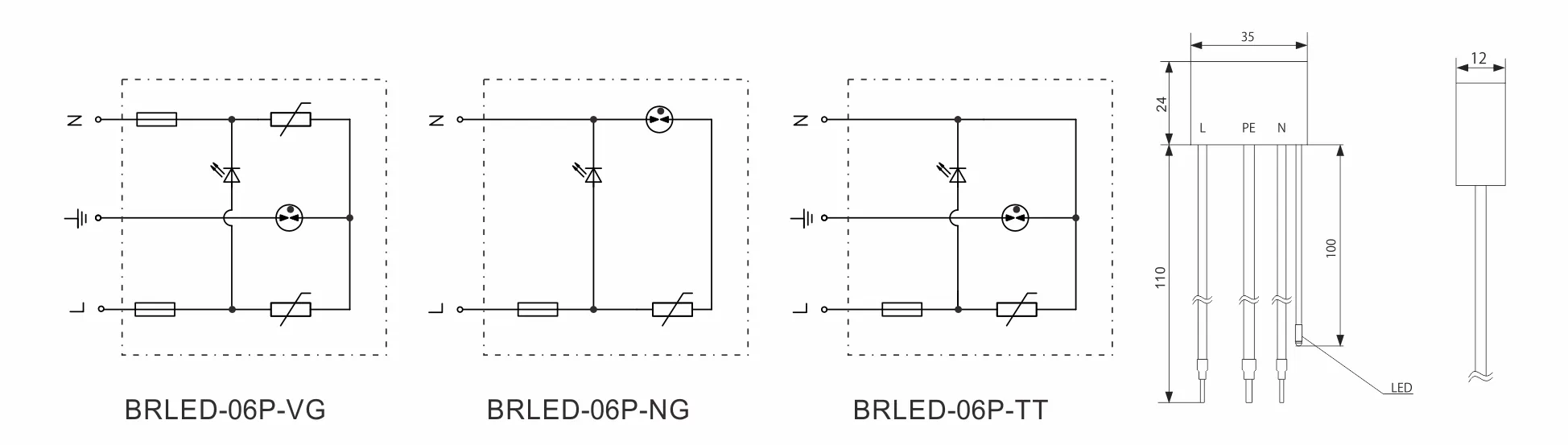

| Spesifikasi | BRLED-06P-VG | BRLED-06P-NG | BRLED-06P-TT | |
| Klasifikasi SPD menurut EN61643-11 | Type 2+Type 3 | Type 2+Type 3 | Type 2+Type 3 | |
| Klasifikasi SPD menurut IEC61643-11 | Class II+Class III | Class II+Class III | Class II+Class III | |
| Nominal a.c. voltage | Tidak | 230V | 230V | 230V |
| Maks. operasi terus menerus a.c. voltase | Uc | 275V | 275V | 275V |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz | |
| Norminal discharge current (8/20μs) | Di dalam | 3kA | 3kA | 3kA |
| Maximum discharge current (8/20μs) | maksimal | 6kA | 6kA | 6kA |
| Combined impulse | Uoc | 6kV | 6kV | 6kV |
| Tingkat perlindungan tegangan | Ke atas | ≤1.3kV | ≤1.3kV | ≤1.3kV |
| Response timeA | ta | ≤100ns | ≤100ns | ≤100ns |
| Kisaran suhu pengoperasian | kamu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | Green light on: OK; Green light off: Replace | |||
| Enclosure materail | Termoplastik UL94-V0 | |||
| Tingkat perlindungan | IP65 | IP65 | IP65 | |
| Order code | B6021 | B6022 | B6023 | |
Fitur:
New designed LED lighting surge protection module.
Provide robust surge current handling capability.
Full protection mode.
Thermally protected varistor technology
Protection of LED lighting systems
Compact form factor (24x35x12mm)
Protection for 230V Systems
IP65 protection
Excellent surge resistance and very low residual voltage
Maximum Lightning Surge Current: 6kA
With high-quality, dependable materials.
