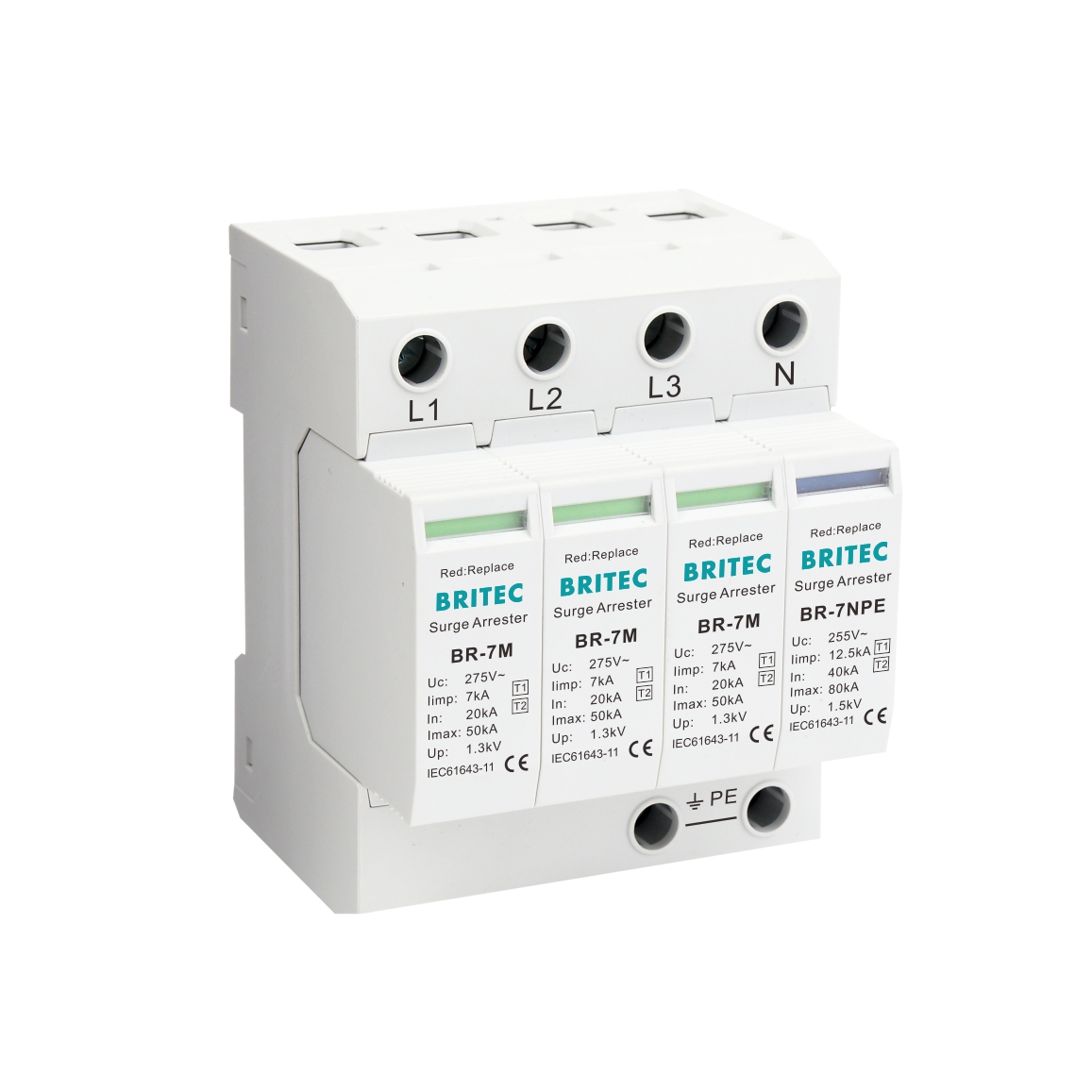

Karakteristik produk:
| Spesifikasi | BR-7M 150 3+1 | BR-7M 275 3+1 | BR-7M 320 3+1 | |
| Klasifikasi SPD menurut EN61643-11 | Tipe 1 + Tipe 2 | Tipe 1 + Tipe 2 | Tipe 1 + Tipe 2 | |
| Klasifikasi SPD menurut IEC61643-11 | Kelas I + Kelas II | Kelas I + Kelas II | Kelas I + Kelas II | |
| Maks. operasi terus menerus a.c. voltase | Uc(L-N/N-PE) | 150V/255V(50/60Hz) | 275V/255V(50/60Hz) | 320V/255V(50/60Hz) |
| Arus impuls petir (10/350μs) | Iimp(L-N/N-PE) | 7kA/12.5kA | 7kA/12.5kA | 7kA/12.5kA |
| Arus pelepasan nominal (8/20μs) | In(L-N/N-PE) | 20kA/50kA | 20kA/50kA | 20kA/50kA |
| Maks. arus pelepasan (8/20μs) | Imax(L-N/N-PE) | 50kA/100kA | 50kA/100kA | 50kA/100kA |
| Energi spesifik | W/R(L-N/N-PE) | 12.25kJ/Ω, 39kJ/Ω | 12.25kJ/Ω, 39kJ/Ω | 12.25kJ/Ω, 39kJ/Ω |
| Tingkat perlindungan tegangan | Up(L-N/N-PE) | ≤0.8kV/≤1.5kV | ≤1.3kV/≤1.5kV | ≤1.5kV/≤1.5kV |
| Peringkat arus hubung singkat a.c. | Isccr | 25kA rms | 25kA rms | 25kA rms |
| Maks. sekering cadangan | 125A gG | 125A gG | 125A gG | |
| Tahan TOV tegangan lebih sementara | UT(L-N) | 180V/5sec. | 335V/5sec. | 400V/5sec. |
| Temporary overvoltage TOV-safe failure | UT(L-N) | 230V/120 menit. | 440V/120 menit. | 520V/120min. |
| Tahan TOV tegangan lebih sementara | UT(N-PE) | 1200V/200ms | 1200V/200ms | 1200V/200ms |
| Waktu respons | tA(L-N/N-PE) | ≤25ns/≤100ns | ≤25ns/≤100ns | ≤25ns/≤100ns |
| Kisaran suhu pengoperasian | kamu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Status pengoperasian/indikasi kesalahan | hijau/merah | hijau/merah | hijau/merah | |
| Luas penampang (Min.) | 4mm² | 4mm² | 4mm² | |
| Luas penampang (Maks.) | 35mm² | 35mm² | 35mm² | |
| Untuk pemasangan | Rel Din 35mm | |||
| Bahan penutup | Termoplastik UL94-V0 | |||
| Tingkat perlindungan | IP20 | IP20 | IP20 | |
| Kode Pesanan | B17324 | B17326 | B17328 | |
| Kode Pesanan (Dengan sinyal jarak jauh) | B17325 | B17327 | B71329 | |
Fitur:
Iimp: 7kA
Visual display.
Precise and easy to install.
It is the combination of Class B (10/350us) and class C (8/20 us ), used at the equipotential connection of LPZ 0 and LPZ 2 zone.
Aplikasi:
It is generally use in electrical industry.
Instalasi:
Wiring according to the mark of surge protector according to the wiring diagram.
When installed according to the installation diagram shows the connection, where l (L1, L2, L3) for the line, n is neutral, PE ground wire, do not mistake. After the installation is complete, check that the protection unit is plugging in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.
Protector in use during the fault display window should periodically verify and view state when red fault display window or remote Terminal outputs alarm signals, the protector fails, should be repaired or replaced in a timely manner.
