Technology Characteristic:
| Spesifikasi | BR-50GR 150 3P | BR-50GR 275 3P | BR-50GR 350 3P | |
| Klasifikasi SPD menurut EN61643-11 | Tipe 1 + Tipe 2 | Tipe 1 + Tipe 2 | Tipe 1 + Tipe 2 | |
| Klasifikasi SPD menurut IEC61643-11 | Kelas I + Kelas II | Kelas I + Kelas II | Kelas I + Kelas II | |
| Tegangan operasi nominal | Tidak | 120V/240V(50/60Hz) | 230V/400V(50/60Hz) | 250V/440V(50/60Hz) |
| Maks. operasi terus menerus a.c. voltase | Uc | 150V(50/60Hz) | 275V(50/60Hz) | 350V(50/60Hz) |
| Arus impuls petir (10/350μs) | Imp | 50kA | 50kA | 50kA |
| Arus pelepasan nominal (8/20μs) | Di dalam | 50kA | 50kA | 50kA |
| Maks. arus pelepasan (8/20μs) | maksimal | 160kA | 160kA | 160kA |
| Jumlah muatan listrik | Q | 25As | 25As | 25As |
| Energi spesifik | W/R | 625kJ/Ω | 625kJ/Ω | 625kJ/Ω |
| Tingkat perlindungan tegangan | Ke atas | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Peringkat arus hubung singkat a.c. | Isccr | 25kA rms | 25kA rms | 25kA rms |
| Maks. sekering cadangan | 350A gG | 350A gG | 350A gG | |
| Tahan TOV tegangan lebih sementara | UT | 230V/120 menit. | 440V/120 menit. | 580V/120 menit. |
| Waktu respons | ta | ≤100ns | ≤100ns | ≤100ns |
| Kisaran suhu pengoperasian | kamu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Status pengoperasian/indikasi kesalahan | hijau/merah | hijau/merah | hijau/merah | |
| Luas penampang (Min.) | 4mm² | 4mm² | 4mm² | |
| Luas penampang (Maks.) | 35mm² | 35mm² | 35mm² | |
| Untuk pemasangan | Rel Din 35mm | |||
| Bahan penutup | Termoplastik UL94-V0 | |||
| Tingkat perlindungan | IP20 | IP20 | IP20 | |
| Kode Pesanan | B17160 | B18137 | B17186 | |
| Kode Pesanan (Dengan sinyal jarak jauh) | B17161 | B18138 | B17187 | |

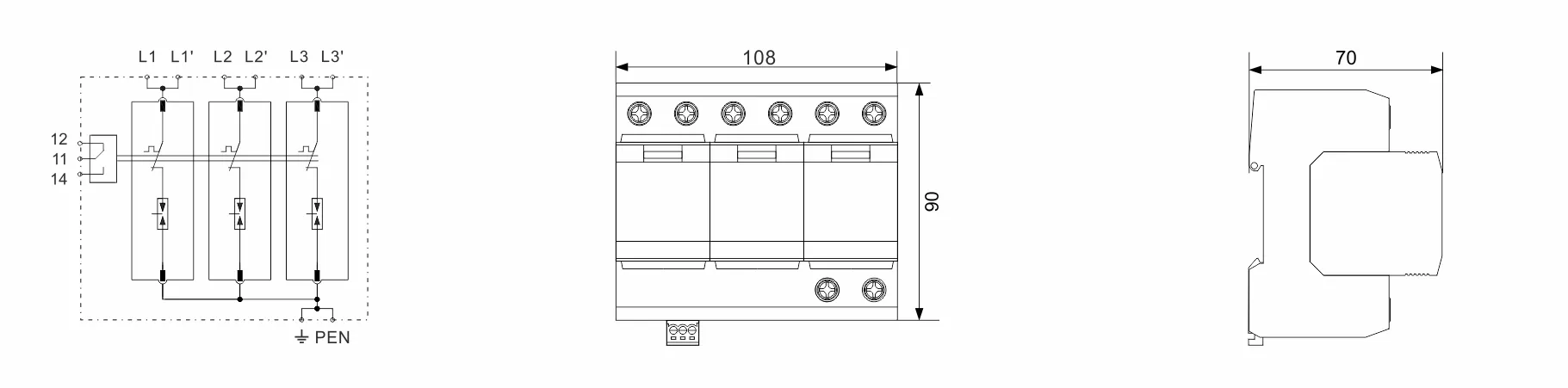

Fitur:
Endurable, sustains multiple strikes.
Protection class: Type 1+2, Class I +Class II.
BR-50GR 3P is suitable for TN-C system.
3 poles 50kA Type 1 lightning arrester.
limp: 50KA on 10/350 µs current impulse.
Imax: 160kA/Phase (8/20μs waveform).
With indication window and remote control contacts.
35mm DIN-rail.
BR-50GR series are Type 1 surge protective devices designed to discharge high current surges without any damage to the back-up electrical equipment.
Aplikasi:
• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
• For protecting low-voltage consumer’s installations against indirect lightning discharges.
• Protect electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting, and motors.
Instalasi:
Better to under the guidance of professional electrician.
Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.
